Configuring a Network to an Edge Device

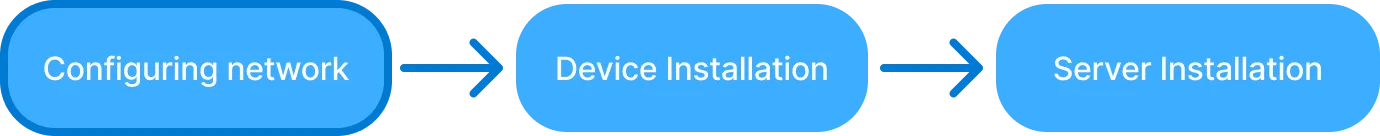

this is the first step required in the edge device installation process in most cases, the network has a dhcp server that automatically assigns an ip address connect the irisity edge™ 10 device to the designated network using an rj45 ethernet cable open windows file explorer and search for irisity edge™ 10 device under network devices the irisity edge™ 10 device icon name starts with ‘irisity edge 10 v1 0’ followed by its serial number double click the irisity edge™ 10 device icon, or navigate with a web browser to the edge™ 10 device ip and continue from the second point (2 ) here if irisity edge™ 10 device cannot find a dhcp server, it automatically sets to a default static ip address of 192 168 10 80, you can access the settings of the edge™ 10 device to assign your static ip assigning static ip address you will need to change this default ip address to an unused static ip address in the designated network segment before you can connect irisity edge™ 10 device to iris+™ core to assign a static ip address to irisity edge™ 10 device, you will need to connect your pc/laptop to irisity edge™ 10 device and set up a temporary private network between the pc/laptop and irisity edge™ 10 device default network in the range of 192 168 10 80 vlan open your pc/laptop's network connections, select the network interface and open its properties open internet protocol version 4 (tcp/ipv4) properties change your pc/laptop's existing ip configuration (it is advised to record the original network settings before performing any modification), and assign the computer a static ip within the edge's™ 10 device default network (subnet mask 255 255 0 0) make sure you do not assign the pc/laptop the same ip as the edge's™ 10 device default network 192 168 10 80 now that your pc/laptop is in the same vlan segment as the edge™ 10 device, open your browser and ensure the irisity edge™ 10 device webpage appears by accessing the default static ip 192 168 10 80 access the "user settings" page with the credentials from the "usernames & passwords" section here access the "network" tab uncheck “automatic configuration using dhcp” and configure the network parameters the new static ip address in the designated network segment (make sure you use an available ip address), subnet mask, default router, and primary dns server (secondary dns server is optional) click "apply" to execute the assignment wait 2 minutes for the edge™ 10 device to reboot, then please continue from the second point (2 ) here assigning virtually separated network segment for live video source in some networks, irisity edge™ 10 device connects to the iris+™ core servers via one network segment, and to the video sources via another virtually separated network segment if a virtually separated network segment is required to access the live video streames log in to the edge™ 10 device user settings as explained in the above section, access the "network" tab and proceed to select "virtually separated network" in section 1 from the dropdown list this will add section 3 for you to designate the ip and subnet mask of the live camera stream network segment click "apply" to execute the assignment wait 2 minutes for the edge™ 10 device to reboot, then please continue from the second point (2 ) here contact irisity support email support\@irisity com phone +46 771 41 11 00
