AXIS I/O Module
Overview

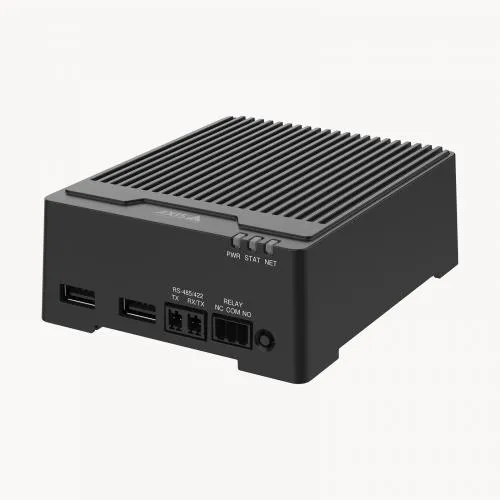

This guide covers the installation, configuration, and operation of the Irisity Digital I/O integration. The integration supports AXIS D3110 Connectivity Hub.
The Axis module contains configurable input ports. Changes in the Digital Input state (i.e., opening or closing the circuits) can activate or de-activate analytics rules in IRIS+™. A typical use case is using an external alarm system that is activated at the end of a business day, which should then activate the analytics rules in IRIS+™ The IRIS+™ Digital IO Gateway service runs on the IRIS+™ Edge device, communicates with the Axis module, and responds to signals from the module input ports to affect analytics rules.
Integrations setup in IRIS+™

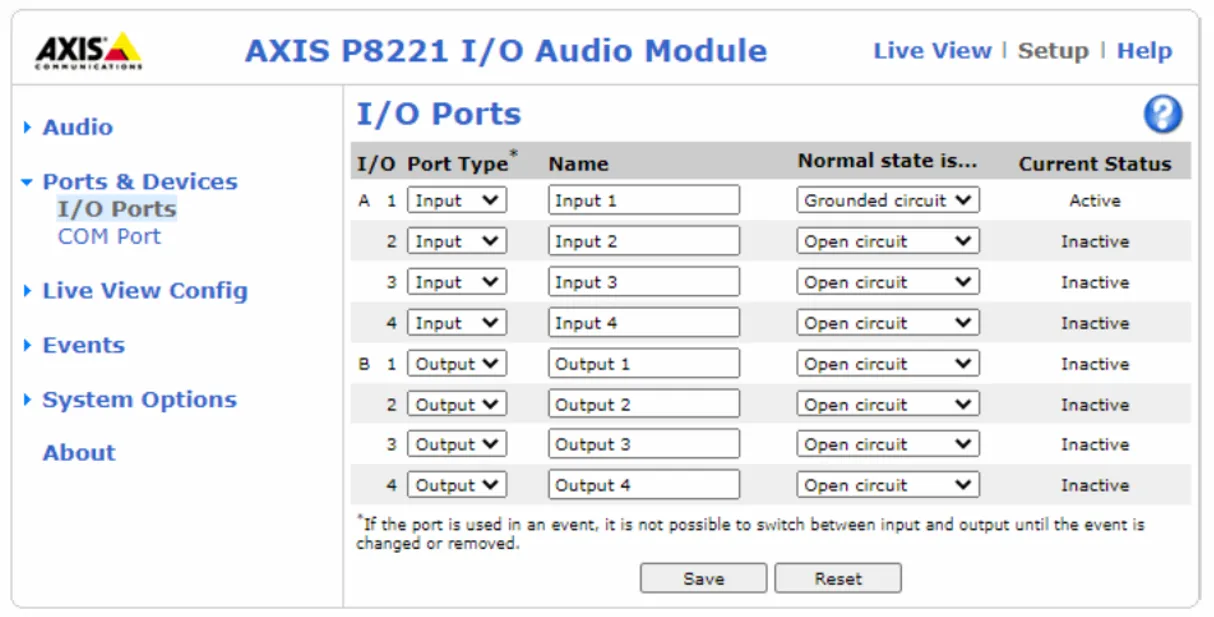

The Axis module can be added to any IRIS+™ Edge device in your IRIS+™ account. Once added, it can be set up to control any rule on any folder or camera in your account. In the following example, we use an Axis P8221 module with 4 Input ports ( A 1, 2, 3, 4). Port #1 is set to Active:
- Select Physical View
- Select the relevant Edge Device
- Select Digital IO
- Select Add Device:
- Populate the following credentials to the Axis module:
- Device Name
- Host
- Port (default is 80)
- User
- Password
- Select Save
The IRIS+™ Edge device disconnects for a few seconds and reconnects. The following window appears:
- Select Edit

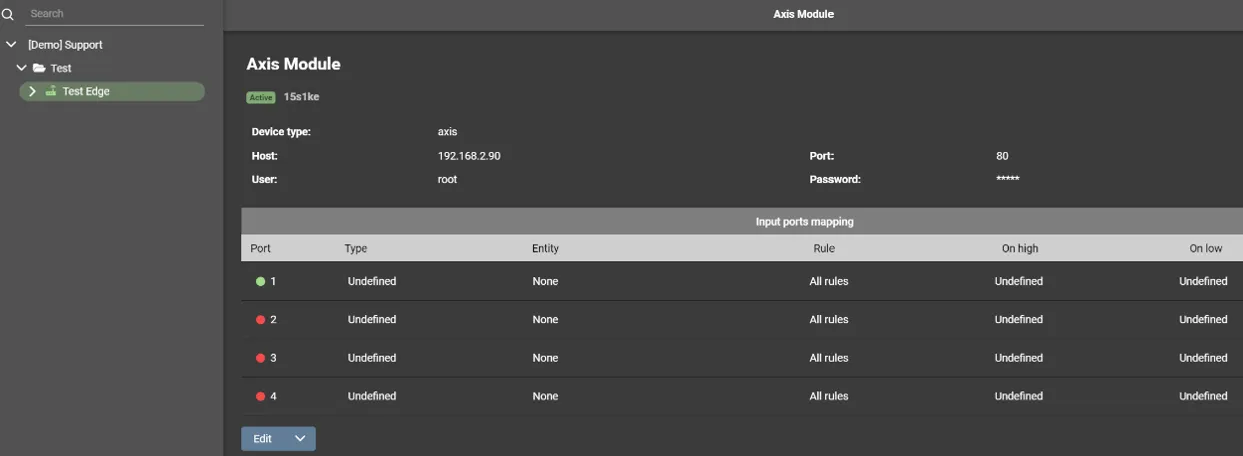

- The Input ports mapping section is now editable:
Select the relevant values for each port line as follows:
Field Name | Possible Values | Meaning |
|---|---|---|
Type |
| |
Entity | As available | Folder name or Camera name as applicable following the Type selection |
Rule |
| The rule/s which will be activated/deactivated upon port state change |
On High |
| When a port is active (green) define what action will be applied to the selected rule/s |
On Low |
| When a port is inactive (red): defines what action will be applied to the selected rule/s |
- Select Save
Note: if a Schedule and/or Calendar definition exists for any of the selected rules, the defined action overrides the Schedule and/or Calendar definition.
